Chongqing Zonsen Aero Engine

Product Description

C100 aero engine is an upgrade of the C80 aero engine, which provides for more horsepower with the same weight.

4-cylinder

4-stroke liquid-/air-cooled engine with opposed cylinders

Dry sump forced lubrication

with separate oil tank, automatic adjustment by hydraulic valve tappet

2 carburetors

Mechanical fuel pump

Dual-electronic ignition

Electric starter

Propeller speed reduction gearbox

Air intake system

TBO 2,000 h

Technical Parameters
WEIGHTKG
Engine with propeller speed reduction gearbox i = 2.4361.8
Exhaust system4.0
Overload clutch1.7
Engine suspension frame2.0
Airbox1.3
PERFORMANCE
71.5 kW100 hp5800 RPM
TORQUE
128 Nm5100 RPM
MAX RPM5800 RPM
BORESTROKE
84.0 mm61.0 mm
DISPLACEMENTFUEL
1352 cm³Min. RON 95 Mogas/ 100LL Avgas

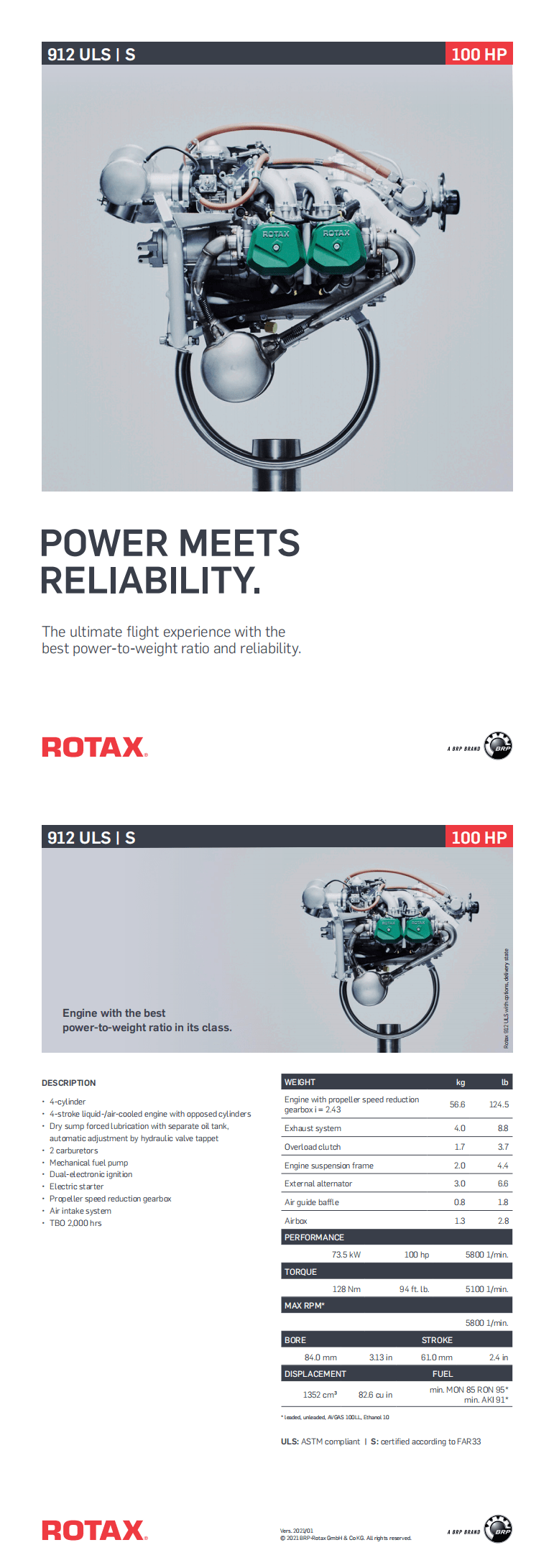

912 ULS | S 100 HP
