Jora
Basic parameters:
Empty weight:
496 pounds (225 kilograms)
MTOW: 992 pounds (450 kilograms)
Stall speed: 24 knots (28 mph) (44 km/h)
Cruise speed: 76 knots (87 mph) (141 km/h)
VNE:
87 knots (100 mph) (161 km/h)

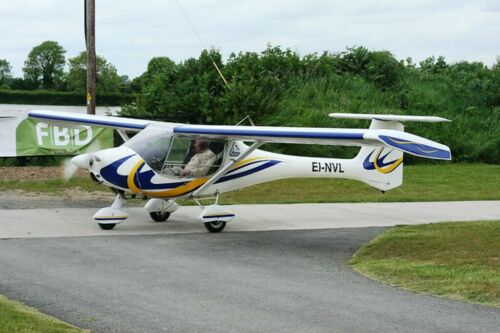

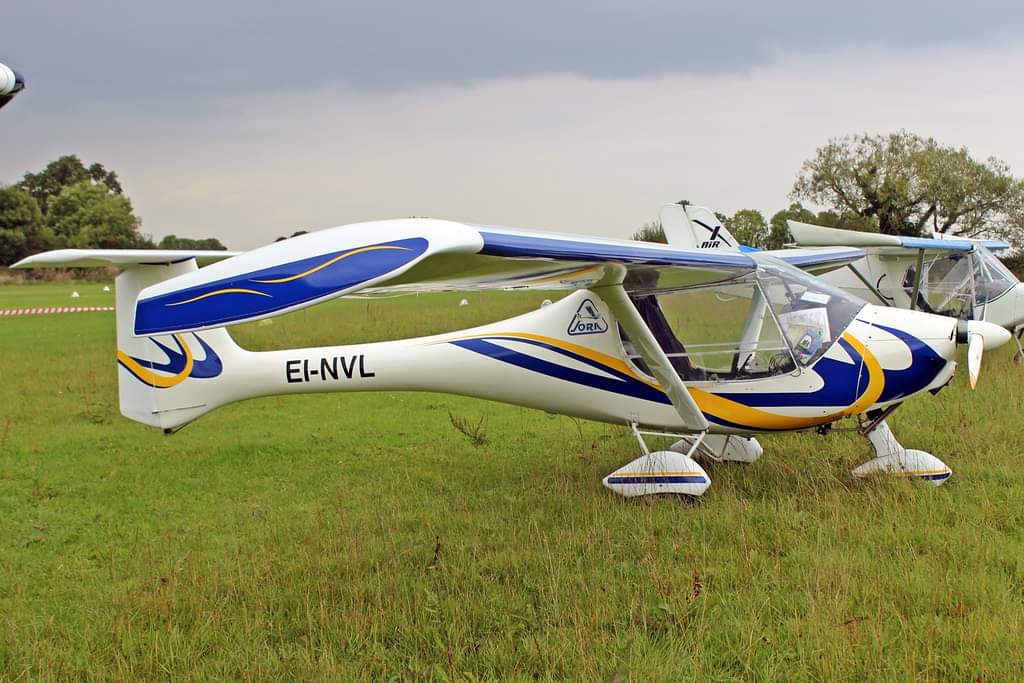

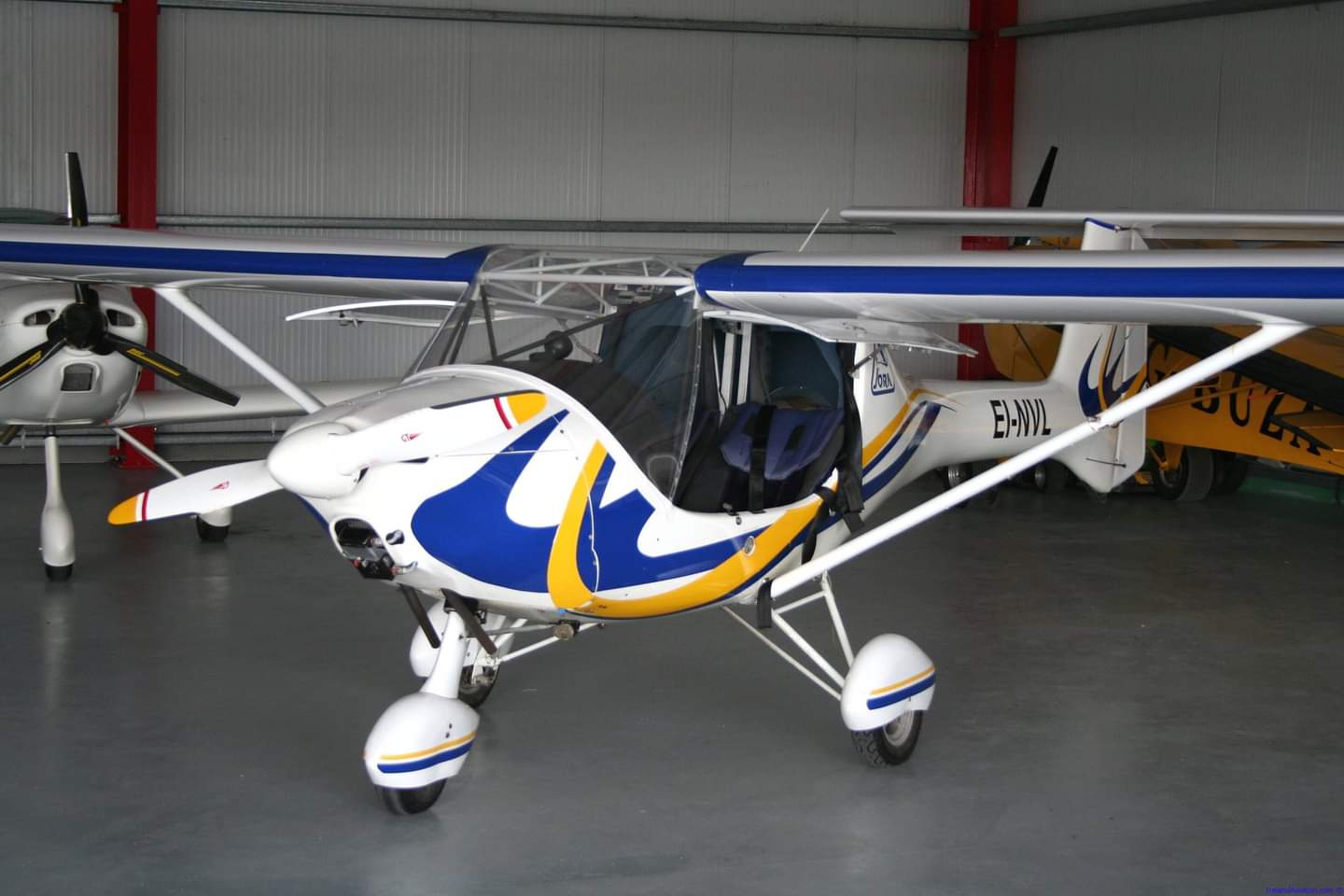

JORA aircraft is a two seater ultra light aircraft with wings and front engine upper section, two seats side by side, tail type T. The landing gear is clumsy and has three wheels. The wheels of the main landing gear are braked, arched, and elastic by rubber blocks.
The structure of the aircraft is a combination of laminated panels and wood, with a finish made of polycarbonate fabric.
The central aircraft is made of hard aluminum horn, and the landing gear is made of steel grade gun.
All wooden components are pasted with Chs Epoxy371. The surface of the Juku fabric is fixed with contact paste Chemopren 140. Glass laminates are made of epoxy resin Chs – epoxy resin 512 or L285, with glass reinforced vertices.
The fuselage is entirely made of laminated panels and is armored with several ribs. The engine bed and front wheel legs are fixed to the engine partition made of plywood, the converging crew seat is fixed to the pilot’s partition, and there are two wooden ribs at the rear, which are armored keels. The central aircraft is riveted together by hard aluminum horns, and the crew space is covered by a transparent shell made of non shattering materials. There is a laminated fluid reservoir under the seat. The reservoir has a conductive graphite layer on its inward surface.
The landing gear is forward with three wheels. The swing arms of the main landing gear are made of steel horns and held by pulling, and are completed by rubber horses. The wheels are equipped with disc brakes, which are mechanically operated by a small lever on the drive lever.
